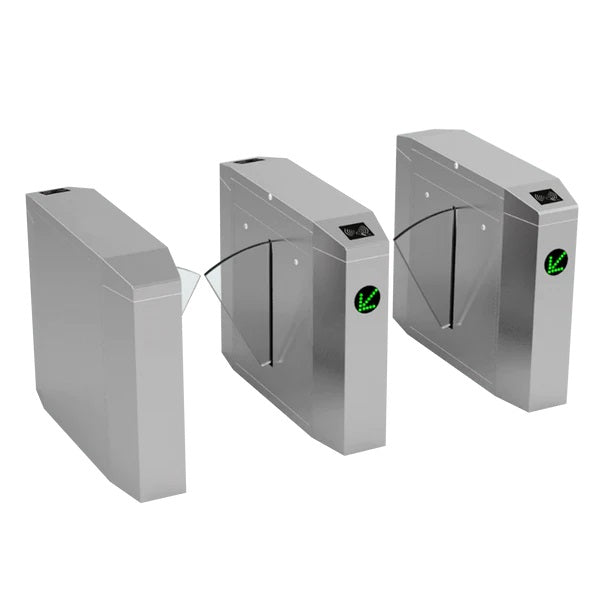

Flap Turnstile: UT560-A
Flap Turnstile: UT560-A

Flap Turnstile: UT560-A

Regular price
Sale price Regular price

56 people are viewing this right now
Product Description
Size 1200*380*980mm
Flap opening/closing time 0.2s
Material 304 # stainless steel
Thickness Head: 1.5mm , Cabinet:1.2mm
MCBF 5 million cycles
Speed 35 person/min adjustable
Passage width ≤600 mm
Direction Bi-directional
Motor 24V / 30W brushless
Infrared sensor 3 pairs
Adaptation humidity 5% – 90%




1. Shell processing technology: using laser, bending, cutting, welding, polishing, polishing, and other processes.

2. Adaptation temperature: -40 °C ~ 80 °C. (Need to add temperature control system).

3. Operating environment Indoor/outdoor (Shelter)

4. Adopt a High-level full-automatic intelligent mechanism, Brushless DC motor, and System operation stable with low noise.

5. Anti-pinch and anti-collision function, Automatic control system, Power board, Passage LED indicator, Passage Mode setting.

6. Anti-shock function, the swing arm is automatically locked when no open signal is received.

7. The power off the flap is automatically open and automatically close when it is powered, which meets the fire protection requirements.

8. with time protection and automatical reset function

9. Unified electrical interface, which Can be connected with reading and writing equipment.

10. Automatical control system, Power board, Passage LED indicator, Passage Mode setting.

11. Using a standard electrical interface, it can easily integrate magnetic stripe cards, barcode cards, ID cards, IC cards, ID cards, and other card readers on the device.



Flap Turnstile: UT560-A

Flap Turnstile: UT560-A

Flap Turnstile: UT560-A

Flap Turnstile: UT560-A

Flap Turnstile: UT560-A

Flap Turnstile: UT560-A

Product package

Flap Turnstile: UT560-A

Factory shots

Flap Turnstile: UT560-A

Flap Turnstile: UT560-A

Flap Turnstile: UT560-A

Document download

            PDF

Technical Data
Packaging and Shipping
Accessories
Download
