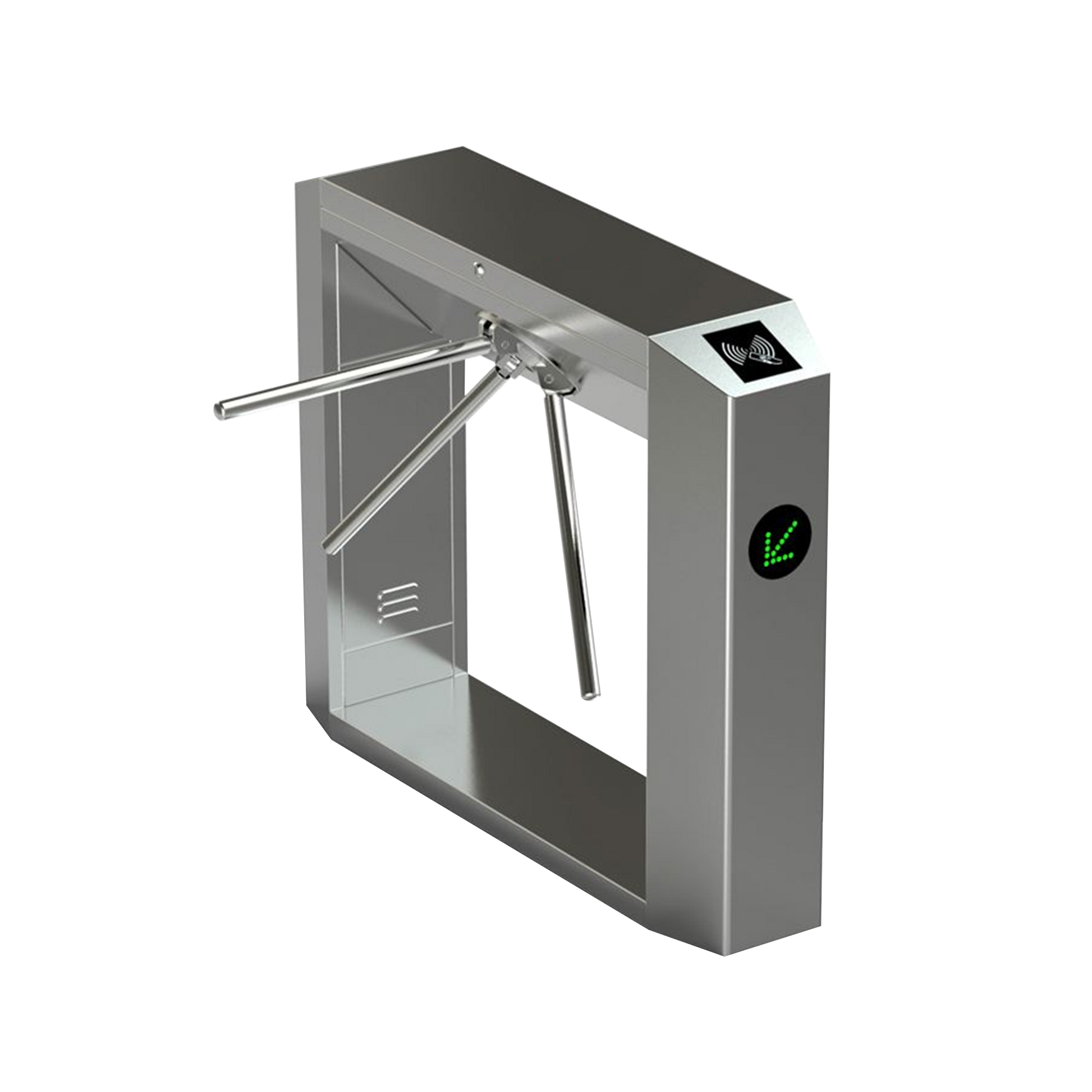

Tripod Turnstile: UT550B
Tripod Turnstile: UT550B
| Size | 1200*280*980mm |
| Opening time | 0.2 seconds |
| Material | 304 # stainless steel |
| Thickness: Head | 1.5mm, Cabinet:1.2mm |
| Support force of arm | 80kg |
| Spee | 35 person/min |
| Passage width | ≤550 mm |
| Direction | Bi-directional |
| Motor | 24V / 30W brushless |
| Positioning accuracy | 1/500 yards |
| Adaptation humidity | 5% – 90% |
1. Shell processing technology: using laser, bending, cutting, welding, polishing, polishing, and other
processes.
2. Rod length/thickness: 500 (mm) / ¢ 38 stainless steel tube.
3. Adaptation temperature: -40 °C ~ 80 °C. (Need to add temperature control system).
4. Working environment: indoors and outdoors.
5. The Rod unlocks quickly and reliably.
6. When power is off, the rod automatically drops.
7. Entrance and exit setting: Allowed or Forbidden.
8. Customized function： Counting function, Memory Function, LED indicator, Voice broadcast.
9. Can be connected to standard input and output interface.
10. High-level semi-automatic intelligent mechanism.
11. Easy to work with the Access control system
12. Passage LED indicator, Passage Mode setting.
13. Using a standard electrical interface, it can easily integrate magnetic stripe cards, barcode cards, ID cards, IC cards, and other card readers on the device.
