◆ Max. resolution 2MP(1920×1080 @ 30fps)
◆ Support low bit rate, low delay, and ROI enhance encoding
◆ H. 265 high effective compression, save bandwidth and storage space
◆ Support multi-line OSD; OSD color can be adjusted
◆ High effective IR LEDs, long service life, IR distance can reach 40-50m
◆ Support smart IR, Prevent IR overexposure at night
◆ ICR infrared filter plate automatic switch, achieve real D/N monitoring
◆ Support corridor mode, increase the monitoring area in longitudinal strip environment
◆ Support PoE (optional)
◆ Support Micro SD card (128G) local-storage
◆ Support 3D digital N/R, WDR
◆ Support auto electronic shutter function, adapt different monitoring environment
◆ Support various intelligent alarm
◆ Support bidirectional talk
◆ Support 2CH alarm input / 1CH alarm output
◆ Support GB28181, Onvif access
◆ Support Email, FTP, NTP
◆ Support HTTPS encryption transmission
◆ Original equipment boot to modify password, ensure password security
Technical parameter
|
CAMERA
|

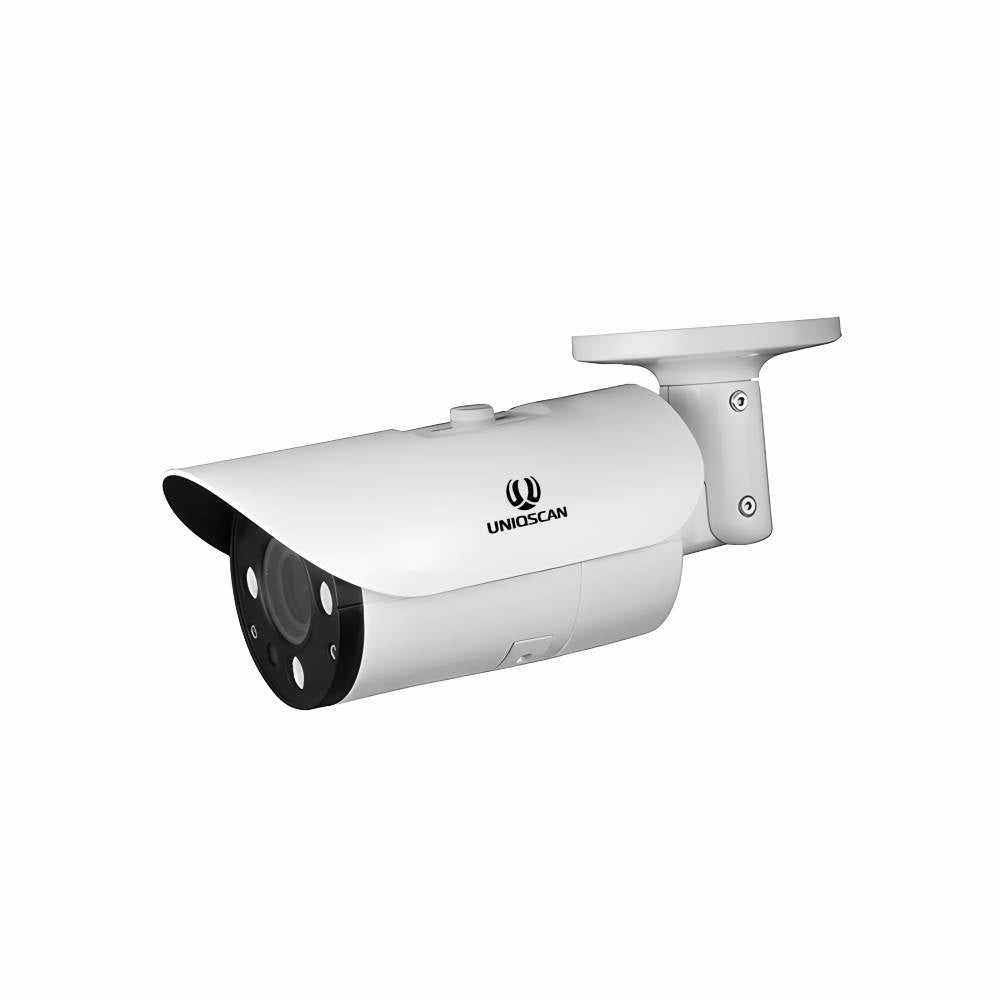

2MP IR HD IP Cylinder Camera
|
| Model |
UNIQ-A3530/200W |
| Image sensor |
1/2.8"SONY 2.07MP progressive scan Exmor CMOS |
|
Min. illumination
|
0Lux/F1.4（IR on）color: 0.01Lux/F1.4, B/W:0.001Lux/F1.4
|
|
IR distance
|
40-50M(3*array IR LEDs )
|
|
Electronic shutter
|
Auto/ Manual(1/25~1/10000), FLK
|
|
Day/ Night
|
ICR switch, auto, color, B/W, ext
|
|
Lens
|
2.8-12mm motorized lens(2.8-12mm DC ICR lens optional)
|
|
Lens interface
|
Φ14
|
|
Auto IRIS
|
DC drive
|
|
S/N ratio
|
≥50db (AGC OFF)
|
|
Output
|
PAL/NTSC adjustable
|
|
WDR
|
WDR(Off/Low/Middle/High)
|
|
Lightboard control
|
Auto/ Manual/Off
|
|
3D N/R
|
Off/ Low/ Middle/ High/ Higher
|
|
Defog
|
Off/ Low/ Middle/ High
|
|
Mirror
|
Off/ Horizontal/ Vertical/ 180º rotation/ Corridor mode(90º rotation, 270º rotation)
|
|
Slow Shutter
|
/
|
|
Exposure control
|
Auto/ Manual
|
|
Image setting
|
Brightness, Contrast, Saturation, Sharpness, Hue
|
|
AUDIO/VIDEO ENCODING
|
|
|
Video compression
|
H.265/ H.264
|
|
H.265 Encoding
|
Main Profile
|
|
H.264 Encoding
|
Baseline / Main Profile / High Profile
|
|
Encoding features
|
NTSC: mainstream: 1920×1080@30fps, sub-stream: D1@30fps
PAL: mainstream: 1920×1080@25fps, sub-stream: D1@25fps
|
|
Max. Resolution
|
1920X1080
|
|
Video bit rate
|
Constant bit rate, variable bit rate (16kbps~8000kbps)
|
|
Video type
|
Complex stream/ Video stream
|
|
Audio compression
|
G.711u
|
|
Audio bit rate
|
64Kbps
|
|
Audio control
|
Support input/ output volume gain control
|
|
ROI
|
Support 4 zones, multi-stage level
|
|
Watermark function
|
/
|
|
NETWORK
|
|
|
Network protocol
|
TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP,FTP
|
|
Access protocol
|
ONVIF,GB28181 (optional)
|
|
Browser
|
Support IE, Chrome, Firefox, Safari
|
|
Video preview meanwhile
|
8
|
|
User permission
|
User add/ modify/ delete, permission management
|
|
Safe mode
|
Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification
|
|
Motion detection
|
Set detection zone, Multi-level sensitivity can be set
|
|
Tampering alarm
|
1 zone
|
|
Privacy Mask
|
4 zones
|
|
Intelligent analysis
|
Target Counting, Left/Loss, Area Detection, Line Crossing
|
|
Event linkage
|
Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage
|
|
Multicast function
|
Support
|
|
ANR
|
Support, match with NVR
|
|
Mobile Surveillance
|
Support Apple, Android
|
|
Device exception detection
|
Support network disconnected, IP conflict, illegal access alarm
|
|
OSD
|
Title, time and date overlay, multi-line OSD, OSD color optional
|
|
DST
|
Support
|
|
Snapshot
|
Support snapshot, snapshot resolution is encoding resolution
|
|
System update
|
Support remote update
|
|
Other
|
/
|
|
INTERFACE
|
|
|
Network interface
|
RJ45 10M/100M network adaptive
|
|
Analog video output
|
1CH 1.0Vp-p Composite video output
|
|
Audio
|
Line input/ output
|
|
Alarm input
|
2CH input
|
|
Alarm output
|
1CH output
|
|
Reset
|
Support
|
|
RS485
|
Support
|
|
TF card
|
Support Max 128G, Micro SD(SDHC /SDXC) card local-storage
|
|
Other
|
/
|
|
GENERAL
|
|
|
Operating temperature
|
-20°C ~ 55°C
|
|
Operating humidity
|
0﹪-90﹪
|
|
Protection grade
|
IP66/ IK09
|
|
Power supply
|
DC12V /PoE optional
|
|
PoE
|
Optional
|
|
Power consumption (max)
|
<8W
|
|
Dimensions(mm)
|
272(W)*93(H)*95.5(L)
|
